Basic Info.
Model NO.
CGF
Filling Principle
Hot Filling
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Rotary
Packaging
Bottle
Packaging Material
Wooden Package
Product Name
Filling Machine
Capacity
1000-18000bph
Function
Washing, Filling, Capping
Filling Type
Hot Filling Type
Bottle Shape
Round/Square
Bottle Size
0.2-2L
Bottle Material
Plastic/Glass
Machine Material
Stainless Steel 304/316
Warranty Time
24 Months
Controlled by
Siemens PLC
Country of Origin
Zhangjiagang City, China
Transport Package
Shipping
Specification
10-30m3
Trademark
Honor Machine
Origin
China
HS Code
8422301090
Production Capacity
30sets/Month
Product Description
Various Types Of Hot Filling And Packaging Are Suitable For The Production Of Soybean Milk, Fruit Juice, Tea And Dairy Products
Technical:
I. Water Treatment System
II. Juice Filling Machine 3-in-1
III. Juice Beverage(Pre-treatment Equipment)
CIP Technical parameter
IV. Automatic Sleeve Labeling Machine
Main parts list:
V. Automatic Shrink Wrapping Packing Machine
VI. Bottle Blowing Machine
Technical:
| Model | RCGF14-12-4 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
| Capacity(500ml/bottle/h) | 1000-2000 | 3000-5000 | 6000-9000 | 10000-13000 | 14000-16000 |
| Filling precision | ≤+5mm(liquid level) | ||||
| Filling pressure(Mpa) | 0.15-0.35 | ||||
| Filling temperature(ºC) | 55-85 | ||||
| Total power | 4.4 | 4.8 | 5.5 | 8 | 9 |
| Weight(kg) | 3200 | 4500 | 6500 | 7500 | 8500 |
| Overall dimensions(mm) | 2300*1800*2200 | 2600*2000*2200 | 3050*2300*2300 | 3650*2800*2400 | 4000*3150*2500 |

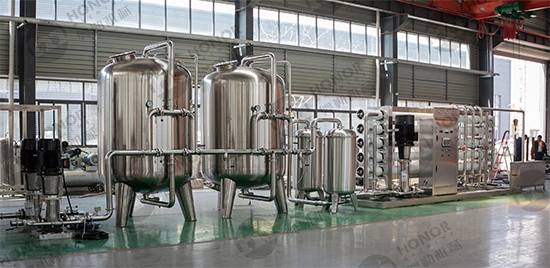

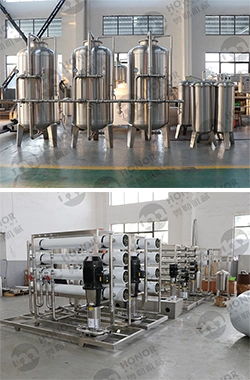

I. Water Treatment System
 | Raw water pump: connect to raw water,we supplier the best supplier Nanfang pump or Customized pump. Silica sand filter: as a filter medium can effectively intercept and remove suspended matter, organic matter and some heavy metal ions in water under certain pressure, thus reducing the turbidity of water. Active carbon filter: can filter chlorine content in water: <0.1PPM,It can also reduce turbidity, chroma of water, purify water quality. |
| Sodium ion exchanger (softener): is used to remove calcium and magnesium ions from water, thus obtaining softened water. Precision filter: adopts PP filter membranes which has high filtering precision, less than 0.1um particles, strong ability of intercepting pollution and long service life. Reverse osmosis: is composed of reverse osmosis membrane (RO), high pressure pump and washing system,It can intercept substances larger than 0.0001 micron. and allow water molecules to pass through. UV: After the RO system, the bacteria in the water are eliminated by using the UV sterilizing lamp. Ozone: It is a strong oxidant, which can quickly kill bacteria in water and air at a certain concentration. Finished water tank: is used to store filtered pure water, which is connected with filling machine for application. Different water sources with different equipment configurations. We will jointly choose the most suitable water treatment system for you! |  |

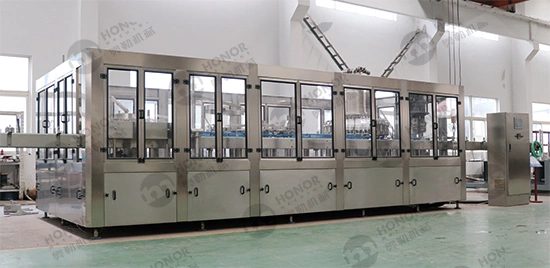

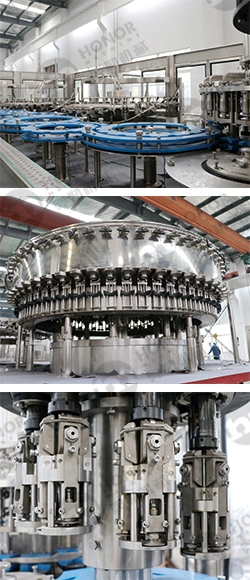

II. Juice Filling Machine 3-in-1
 | This series of equipment is used for hot filling production of tea drinks, fruit juice drinks and other products. This series is a combination of sterilization, filling and sealing. the design is scientific and reasonable, so operate is simple. It is the preferred equipment for hot-filling drinks. It adopts advanced technologies such as human-machine interface touch control system, PLC computer control, frequency converter control, etc. It has high degree of automation and easy operation. |
| The filling temperature of this machine is 55-95ºC hot filling, It adopts suspension air conveyor. When change the bottle,It only needs to adjust the conveying width, which is more efficient and labor-saving. Filling action is smooth, fast, high precision, reliable sealing, low material loss and other functions, avoid secondary pollution of materials effectively . Technical features: 1)It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing. 2)There is no need to adjust the height of equipment through neck holding tech for bottle transportation.And what is only to change some spare parts. 3)High speed filling line is of clamp transferring technology.Bottle shapes are more varied, and the working table inside the machine is more laconic. 4)By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier. 5)Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination. 6)High speed and large flow filling valve assures the high filling speed and exact fluid level. 7)Parts contact with the liquid are all of excellent stainless steel or food level plastic.The electric system is of international brand and achieves the national food sanitary standard. 8)The bottle-out starwheel is of screwdown shape.When bottle size is changed, there is no need to adjust the transferring chain's height. |  |
| Item | Parts Name | Brand | Brand |
| 1 | PLC | SIEMENS | Germany |
| 2 | Inverter | ||
| 3 | Touch Screen | ||
| 4 | Switch | ||
| 5 | Contactor | ||
| 6 | Relayer | ||
| 7 | Solenoid Valve | AIRTAC | Taiwan |
| 8 | Drive motor | FEITUO | Swiss |
| 9 | Reducer | CNP | China |
| 10 | Water Pump | SKF | China |
| 11 | Main Bearing | AUTONICS | Sweden |
| 12 | Sensor | AIRTAC | Korea |
| 13 | Air component | ABB | Taiwan |

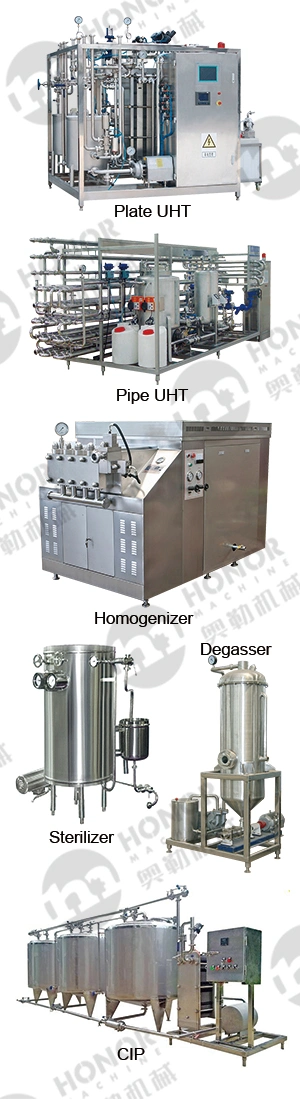

III. Juice Beverage(Pre-treatment Equipment)
 | Plate UHT sterilizer: It is mainly used for heating and sterilizing sensitive liquids such as fruit juice, tea and alcohol etc... The sterilization temperature is 85-135ºC,the capacity is 1-15T. The control components are all internationally famous brands. |
| Pipe UHT sterilizer: It is mainly used for high viscosity, large flesh and acidic drinks, such as fresh juice, jam and coffee etc..., The sterilization temperature is 80-137ºC,the capacity is 1-15T, The control components are all internationally famous brands. | |
| High pressure homogenizer: t means under the triple action of extrusion, strong impact and pressure-loss expansion,make the liquid is more uniformly mixed with each other, so that the liquid taste is more soft, the capacity is 1-10T. | |
| Vacuum degasser: It is mainly composed of degassing chamber, condenser, vacuum pump etc. It is widely used in fresh juice, tea and milk drinks etc. It can remove air (oxygen) from liquid, inhibit browning and oxidation of substances, prevent quality degradation, remove particulate gas, prevent foaming from affecting sterilization, reduce corrosion to the inner wall of container, and play an anti-corrosion role. | |
| UHT instantaneous sterilizer: It is suitable for instantaneous sterilization of liquid materials,such as fruit juice, fresh milk, soy milk and alcohol drink etc. It has such features as high efficiency, energy saving, simple operation and good sterilization effect etc. | |
| CIP(Clean-in-place) System: It is mainly used for cleaning equipment and pipes such as beverage, juice, beer and dairy products etc. CIP uses centrifugal pump to convoy cleaning liquid into the material pipeline and equipment for full closed cycle cleaning, reducing labor depth and ensuring the quality of beverages. |
| Operation temperature | 60-138ºC |
| Cleaning time | 12min/time |
| Sequence of cleaning liquids | Clear water---alkali liquid---acid liquid---clear water |
| Material name | 2% Nitric acid liquid, 2% caustic alkali liquid, 2% clear water |
| Outline dimensions | 3240*1740*1950mm |
| Steam pressure | 0.3-0.7Mpa |
| Motor power | 2.2kw |
| Centrifugal pump flow | 10m3/h |
| Centrifugal pump lift | 40m |
| Equipment weight | 1050kg |

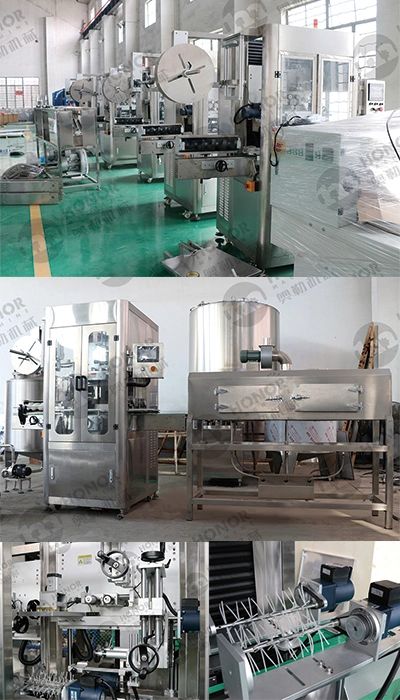

IV. Automatic Sleeve Labeling Machine
 | 1. Shrink Labeling Machine For Sleeve adpots PLC programmable controller,imported servo motor,servo driver, frequency converter and transducer. 2. Shrink Labeling Machine For Sleeve adopts the positioning module to ensure the casting label precise,rapid and stable. 3. Our Shrink Labeling Machine For Sleeve not only has a highly precise position for casting label, but also withstand the perfect shape of the bottle after shrinkage. Advantages: 1. It is suitable for all kinds of drinks, such as fruit juice, tea beverage, dairy products, pure water, beer, sports drinks and other food and beverage industries. It not only has high accuracy of labeling position, but also can highlight bottles and perfect bottle-shaped after shrinkage. 2. Highly stable mechanical structure,The whole machine adopts stainless steel protective frame cover and aluminum alloy rigid frame, which is stable and rust-free. 3. Flexible choice of all kinds of bottle type: round bottle, square bottle, elliptical bottle etc. can also choose the bottle mouth or body. 4. Unique synchronous cutter holder, within the scope of specifications, no replacement cutter holder. If the specifications need to be changed, it can be completed quickly in 5 minutes. 5. The shape is exquisite and beautiful, the overall structure is strong, and the use is more lightweight and flexible. 6. Exclusively designed reciprocating cutter, which adopts rigid body combination of mechanism, can operate smoothly and prolong tool life by twice. 7. Simple central pillar positioning, easy to change specifications, easy to operate, easy to understand, easy to learn, completely avoiding the user's troubles. 8. The structure of this machine is simple and generous, which can ensure low failure rate and simple maintenance. 9. The whole series of security main body safety protection frame is really intimate design |
| No | Name | Brand | Manufacturer |
| 1 | SUS304 stainless steel | South Korea | |
| 2 | motor | TWT | Taiwan |
| 3 | Bearing | NSK MNB EZO IJK | Japan |
| 4 | stepper motor | Tamagawa | Japan |
| 5 | Stepping Driver | Ertl | Taiwan |
| 6 | PLC controller | Omron | Japan |
| 7 | Inverter | Delta | Taiwan |
| 8 | touch-screen | Weview | Taiwan |
| 9 | Contactor | Customized | French |
| 10 | Sensor | SUNX | Japan |

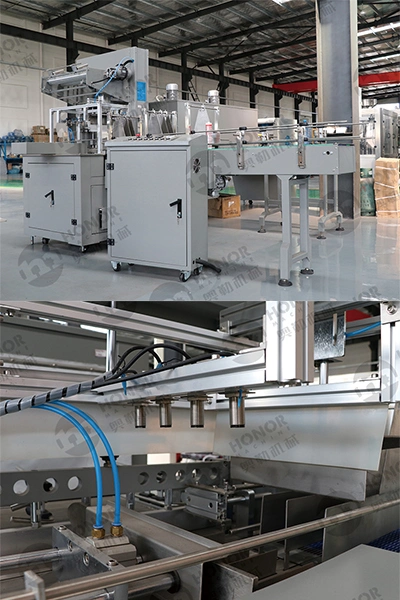

V. Automatic Shrink Wrapping Packing Machine
| Automatic shrink wrapping packing machine: Specially designed for beverages, pure water, fruit juice, wine and other drinks. With full automatic functions of bottle transfer and arrange, film wrapping, sealing and cutting, shrinkage, cooling and other qualities. It adopts the world's advanced film thermostatic sealing technology, and the sealing is firmly cleaned. The PLC program is used for automatic circulation control, and the performance is stable and reliable. Three-layer heat insulation, good heat preservation performance, fast heating, energy saving. Advantages: 1)Frequency control,Secondary bottle transport device. 2)The whole set which are push bottle,heat sealing cutting adopt pneumatic structure. 3)Inductive switch control film length. 4)Touch screen,PLC control system advanced reliability of the equipemtn function. 5)Circular wind machine ,resuare well-proportioned temperature of the shrink furnace. 6)Strong cooling system can reassure finalize the design quickly. 7)Heat-fast customized transport net,transport steady,high strength and stand wear and tear. 8)Frequency conversion timing net transportation structure. 9)The height of the conveyer belt can be made according to the user,adustable range±50mm 10)Bottle transport machine can satisfy the direction of the user,it can prolong and shorten 11)Pterygoid stainless iron heating system,durability. 12)Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line. |  |
VI. Bottle Blowing Machine
 | Bottle blowing machine:It is a kind of equipment which can make plastic granules into hollow containers by blow molding process. It is mainly used in beverage and food industry. Features of main body: 1). Stable performance with advanced PLC. 2). Automatic preform conveyer to save human cost. 3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production. 4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable. 5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure. 6). Introduce the customized air cylinder to avoid contamination and noise. 7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine. 8). Strong clamping force with high pressure and double crank links to lock the mould. 9). Two ways of operating: automatic and manual. 10). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process. 12). Ideal cooling system make the finished bottles without any flaws. |
