Product Description

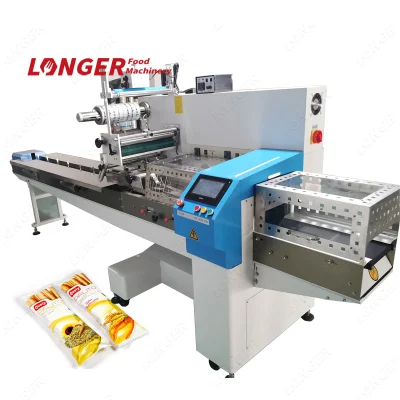

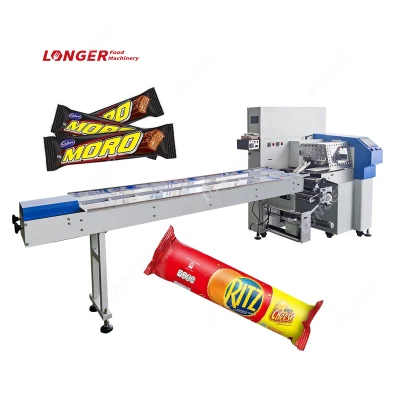

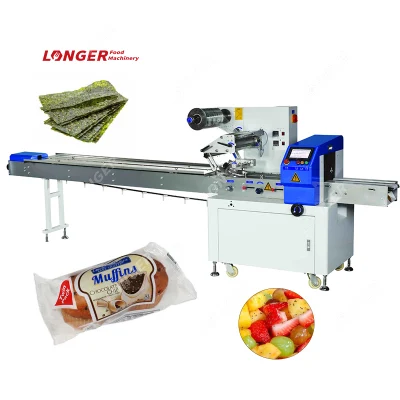

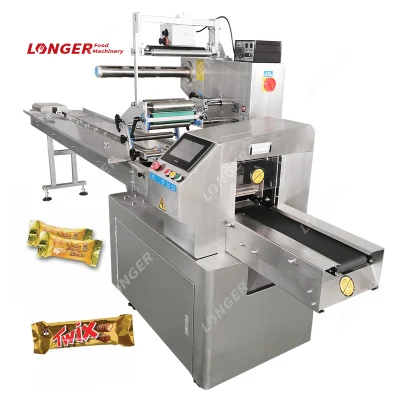

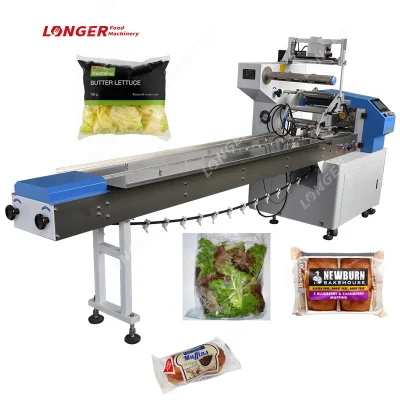

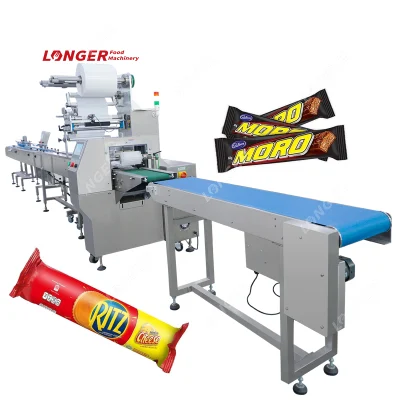

Introduction of Sweet Corn Packaging Machine
This machine is a continuous packaging machine with very strong packaging capacity and suitable for various specifications for food and non-food packaging. It can not only be used for the packaging of unbranded packaging materials, but also can be used for high-speed packaging with pre-printed reel materials.
Sweet Corn Packaging Machine is a horizontal three-sided sealing equipment that automatically completes the processes of bag making, filling, sealing, cutting, and finished product removal. , Daily chemical, pharmaceutical and other industries automated production line packaging.
Model | GGZS300SE | GGZS350SE | GGZS600SE | GGZS450WSE |
Bag Size | 35-140mm | 50-160mm | 80-250mm | 50-160mm |
Height | 5-55mm | 5-60mm | 5-80mm | 5-80mm |
Roll film dia. | MAX300mm | MAX300mm | MAX300mm | MAX300mm |
Packing Speed | 25-230bags/min | 25-230bags/min | 25-150bags/min | 25-80bags/min |
Size | 3910*820*1520mm | 3940*1010*1520mm | 4040*1020*1535mm | 3960*830*1780mm |
Voltage | 220V 50/60HZ 4.1KW | 220V 50/60HZ 5.7KW | 220V50/60HZ 6.15KW | 220V50/60HZ 6.15KW |
Weight | 520kg | 490kg | 890kg | 930kg |
Main Performance of Sweet Corn Packaging Machine
1. Double frequency converter control, the bag length can be set and cut immediately, no need to adjust the idling, it can be done in one step, saving time and film.
2. Human-machine interface, parameter setting is convenient and quick.
3. Fault self-diagnosis function, fault display is clear at a glance.
4. High-sensitivity photoelectric eye color tracking, digital input of sealing and cutting position, so that the sealing and cutting position is more accurate.
5. Temperature independent PID control, suitable for various packaging materials.
6. Positioning stop function, no sticking to the knife, no waste of film.
7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
8. All controls are realized by software, which is convenient for function adjustment and technical upgrading, and is backward.
